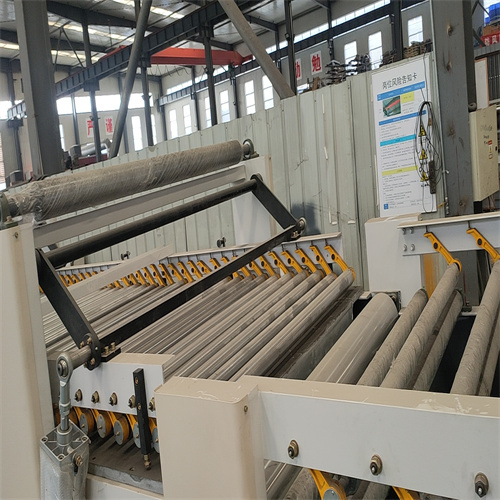

Double Facer for Corrugated Cardboard Production
Description of Double Facer
Double Facer is corrugated paper enter into hot plants heating and molding after pasted glue, and becoming board after cooling.
Technical parameters of Double Facer
1. Total heating plates: 16 pieces, 18 pieces, 20 pieces, 22 pieces.
2. 2 sets of convey belt tense control devices.
3. Tension device of lower belt fixed vertically to make it easy to adjust.
4. Oil pressure lift device is hidden inside.
5. Heating plate surface ground and chromed, in accord with the national standard of pressure vessel i, all attached inspection certificates.
6. Pneumatic pressure adjustment can be separated to be three sections according to the thickness of the paper board.
7. Good steam tube position, the temperature can be adjusted by grouping heating plates.
Features of Double Facer
1. Hot plate with intensive gravitational roll structure.Pressure roller with lifting hydraulic structure
2. the heat pipe of the heating board has 3seven sections of control temperature and a temperature display.
3. up the cotton belt with a double cylinder S cotton belt tensioning device.
4. bottom cotton belt with s-shaped correction manually tensioning mechanism, structure simple and practical, under with manual fine-tuning.
5. Drive roller coated with attached wear-resistant rubber, showed a herringbone structure, With a high, ensure smooth cardboard output.
