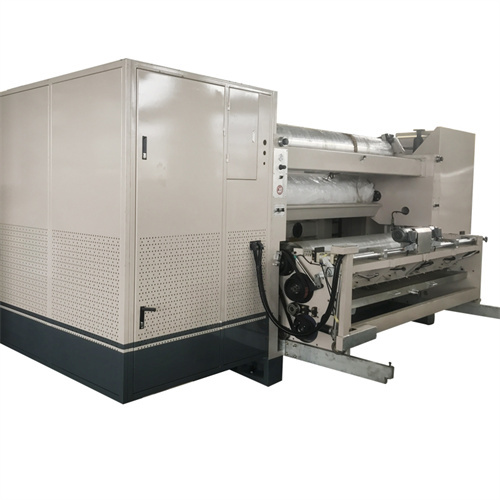

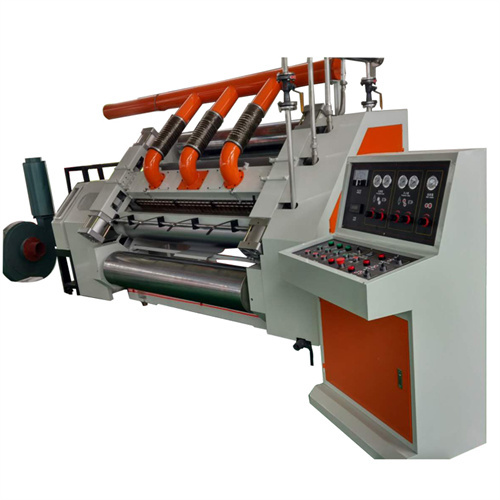

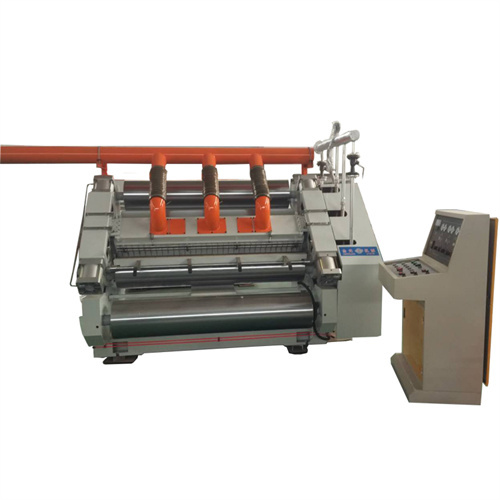

Product description of Fingerless Single Facer Machine
Fingerless Single Facer Machine is for producing single flute corrugated cardboard. It is one type of Single Facer series. It is part of the Corrugated Cardboard Machine line & Automatic Corrugation Machine line.
The Tungsten Carbide Corrugating Roll. High-speed machine to make the corrugated cardboard. It is the heart part of the 2-layer Corrugating Production Lines and automatic 3/5/7 layer Corrugating Production Lines in the corrugated packaging industry. The flute of the cardboard can be an A/B/C/E/F flute. The heating way of the machine can be electric, steam, oil, or gas heating. Working speed:0-220m/min.
Technical parameters of Fingerless Single Facer Machine
1. Corrugated material 45CrMo, diameter 268, wall thickness 45mm.
2, hard chrome plated surface hardness HRC55-60.
3. Motor power: 5.5kw
4. Havalo national standard high-temperature bearing is adopted for bearing.
5. High-temperature grease is used for lubrication. Good sealing and reliability.
6. Standard flute: E=1.6 high and UV.
7. External size: 3000 * 1600 * 2600mm.
8. The design speed is 60m/min, and the economic speed is 40m/min.
9. The machine weight is about 3.2t.
